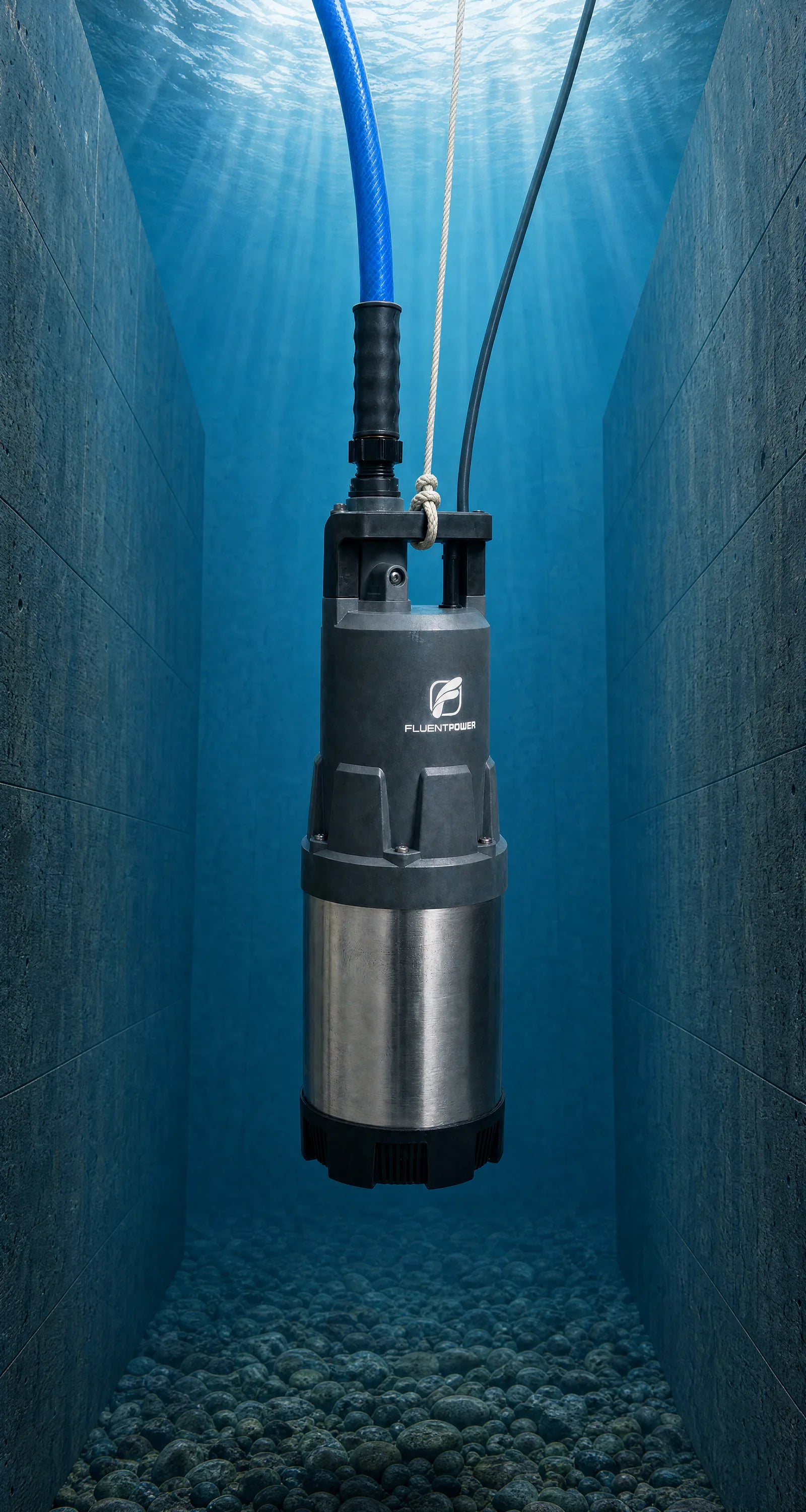

DEEP-WELL INSTALLATION
39 FT MAXIMUM SUBMERSION
A vertical installation keeps the pump below the water source while the separate discharge hose, safety rope and power cable run upward through the well.

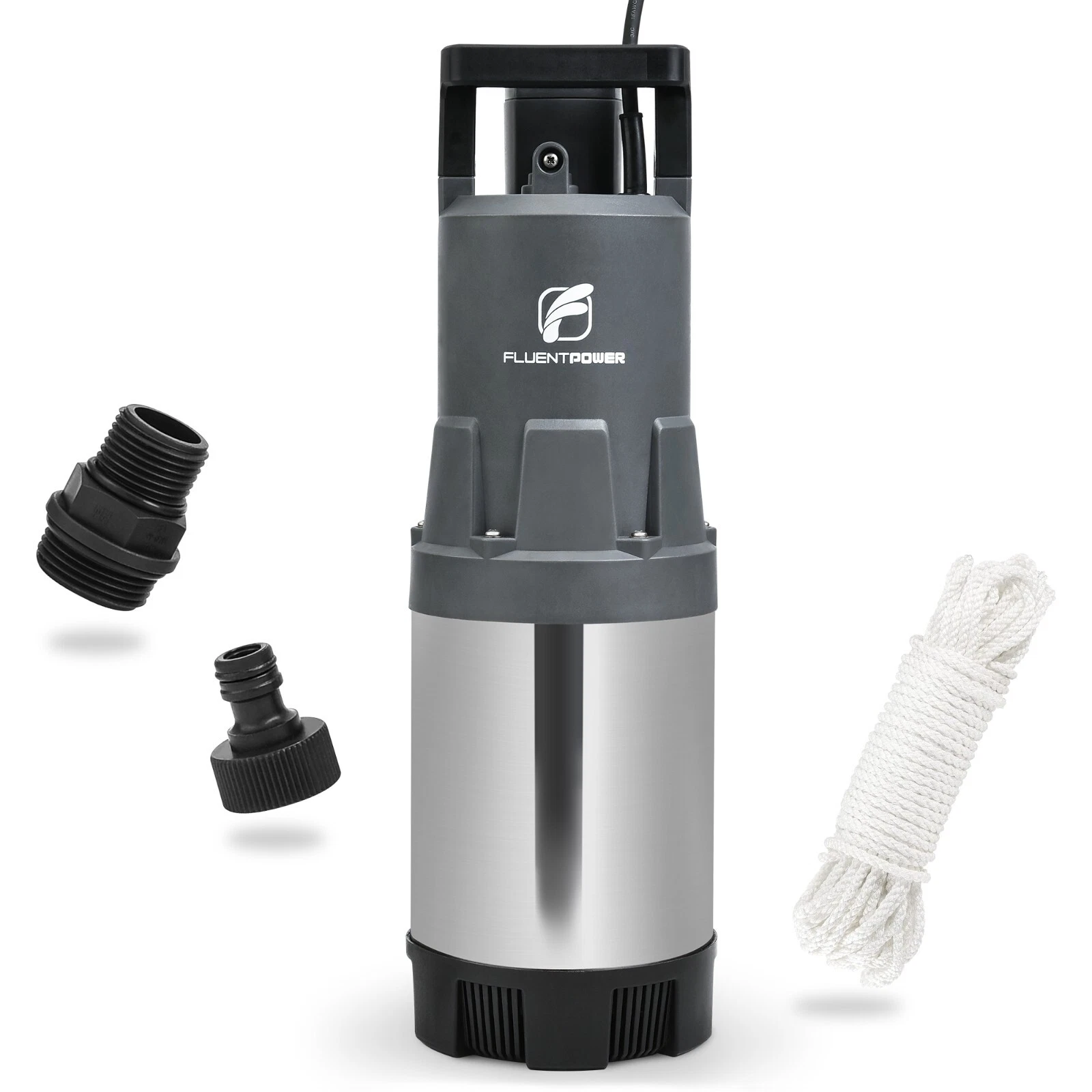

AUTOMATIC DEEP WELL · Model FSP1300HC-1
PRESSURE FROM DEPTH.
ON DEMAND.
A pressure-responsive deep-well pump with automatic start/stop, a multi-stage impeller system and 147 ft maximum head for high-pressure clear-water supply.
$129.99
USD
In stock
1,700MAX GPH
147 ftMAX HEAD
1.5 HP / 1,100 WPOWER
Automatic pressure-responsive start / stop
49.0 ft power cord and 66 ft nylon rope
Confirm outlet connection before use
DEEP-WELL REACH.
PRESSURE-READY CONTROL.
Built for vertical well installations where lift and outlet pressure matter. The pressure-responsive control starts and stops the pump as demand changes, while the multi-stage hydraulic system builds the head needed to move clear water from depth.

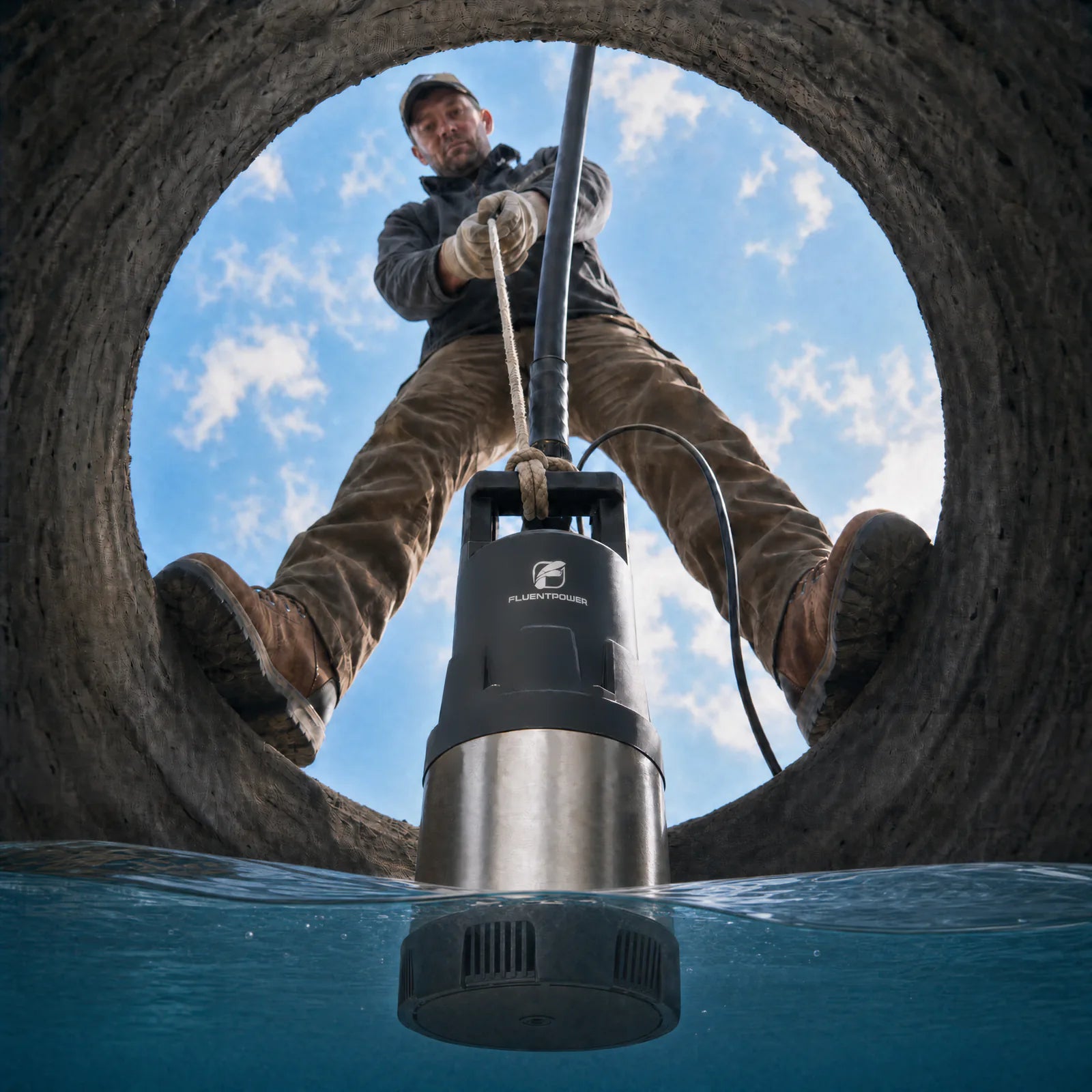

INSTALLATION CONTROL
LOWER IT ON THE ROPE—NOT THE CABLE.
The installation view makes the three routes clear: water hose, support rope and electrical cable remain separate as the pump is lowered vertically.

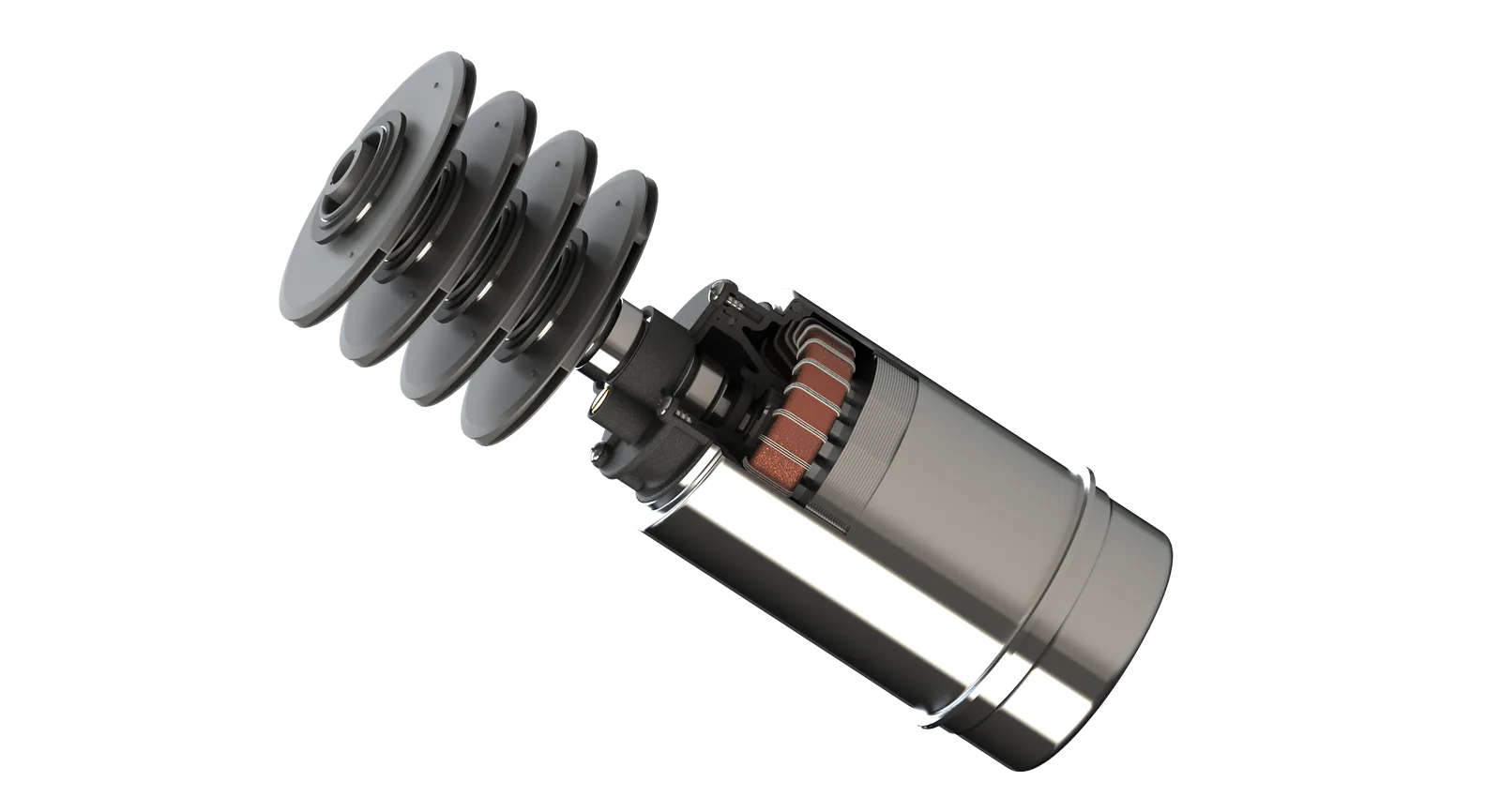

INTERNAL HYDRAULICS
MULTI-STAGE IMPELLER SYSTEM.
Stacked impeller stages build pressure progressively, supporting the model's high-head clear-water delivery role.
Manual-backed product details.
Specifications are verified against the supplied 16-page outlined FSP1300HC-1 manual. Final-version confirmation, Shopify file binding and replacement-ASIN package confirmation remain open.
POWER1.5 HP / 1,100 W
MAX FLOW1,700 GPH
MAX HEAD147 ft
MAX SUBMERSION39 ft
MAX WATER TEMP95°F
POWER SUPPLY120V AC / 60Hz
CONTROLAutomatic pressure control
POWER CORD49 ft
NYLON ROPE66 ft
DISCHARGE PORT1 in NPT
DIMENSIONS6.1 × 6.1 × 19.4 in
MODELFSP1300HC-1
Flow changes with lift.
Measure total vertical lift before choosing the pump. The supplied manual lists four approximate output points with a 1 in discharge hose.
SOURCE→PUMP→OUTLET
LIFT HEIGHTFLOW RATE
16.4 ft1,427 GPH
32.8 ft1,268 GPH
65.6 ft977 GPH
98.4 ft687 GPH

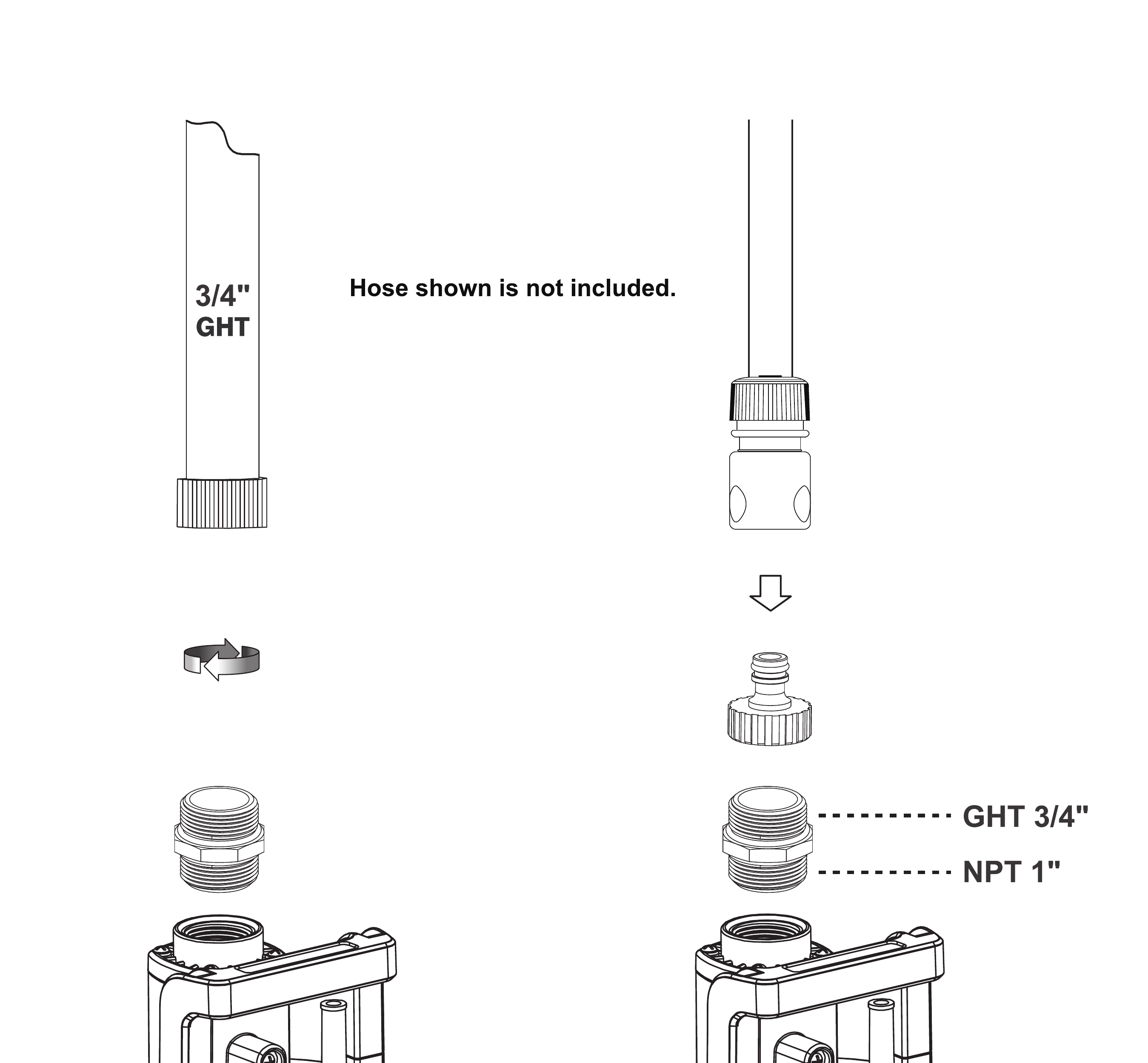

Choose how you'll connect.
Match either the threaded garden-hose path or the quick-connect hose path shown in the manual.
THREADED GARDEN HOSE

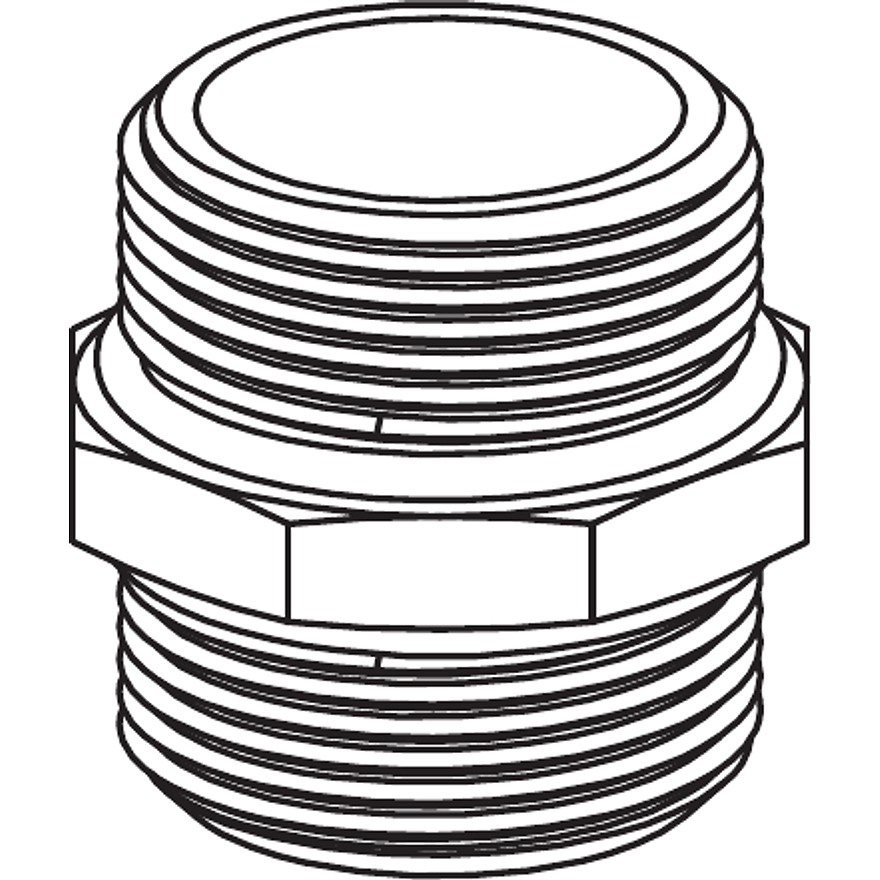

Thread the supplied 1 in NPT-to-3/4 in GHT adapter into the pump outlet, then attach a matching 3/4 in GHT garden hose.
QUICK-CONNECT HOSE

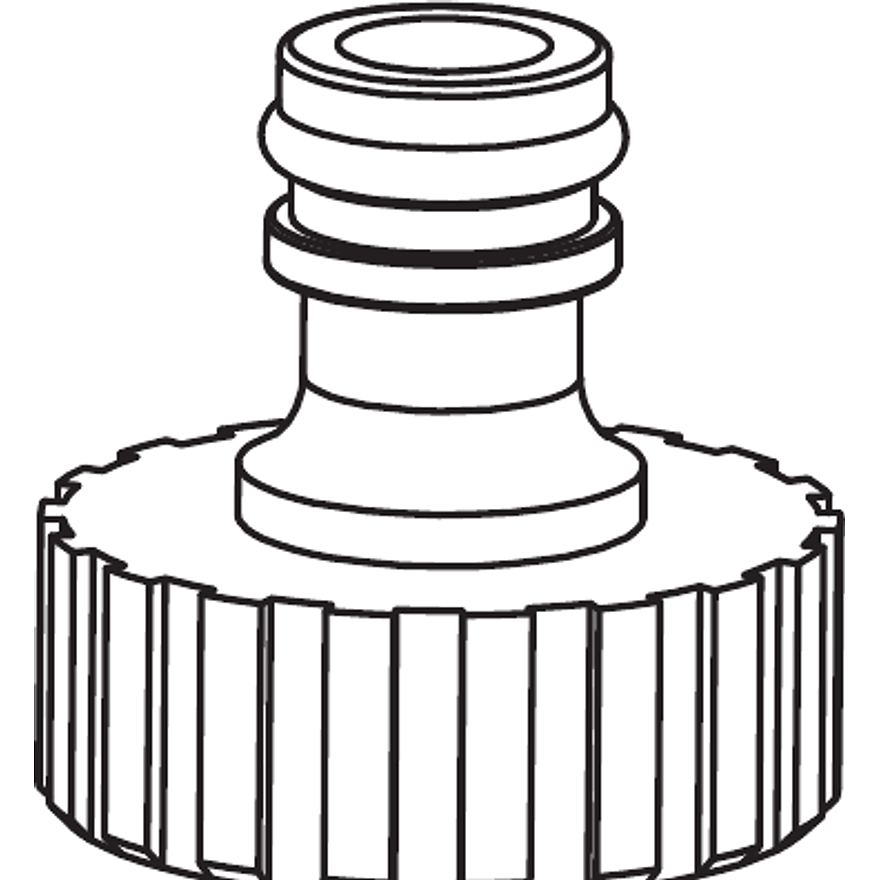

Install the NPT-to-GHT adapter first, then add the supplied quick connector and attach a compatible quick-connect hose end.
FIELD NOTEThe pump outlet uses 1 in NPT. The threaded garden-hose path converts it to 3/4 in GHT; the quick-connect path stacks the quick connector above that adapter.
Know the use limits.
The pump is intended for clear-water deep-well installations within the operating limits stated in the supplied manual.
MANUAL & SUPPORTFIT
Clear-water deep-well installations within the listed lift, submersion, temperature and well-size limits.
NOT FIT
Do not use for flammable, explosive, corrosive or heated liquids. Confirm electrical protection, cable support and well dimensions before installation.
