PRODUCT OVERVIEW
FSP1100DWB · 1 HP

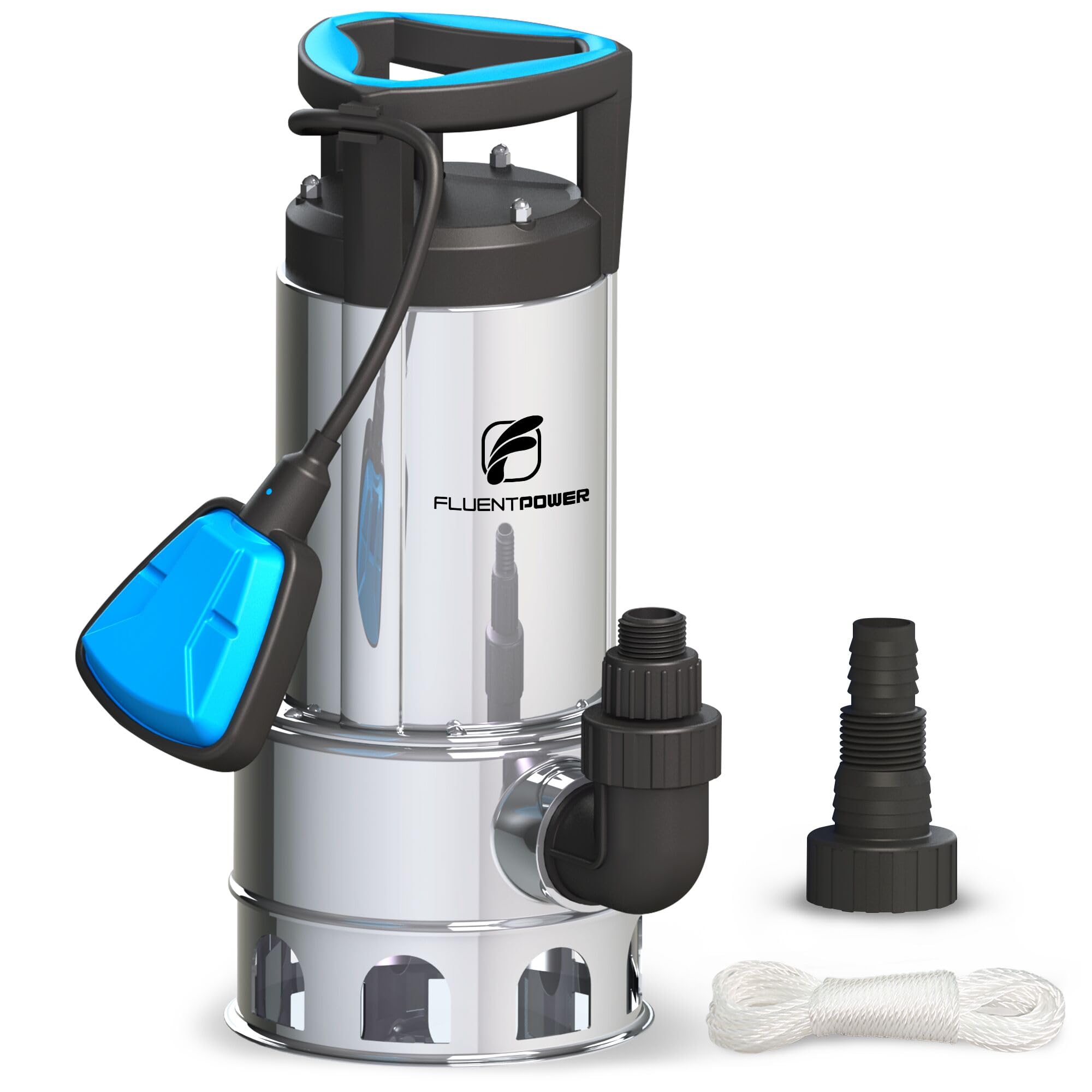

1 HP Stainless-Steel Dirty-Water Sump Pump
$79.99 USDIn stock
1 / 6 · Product
Product photos and illustrative graphics. Hose not included.
Check your fit: Match the discharge adapter and hose size. Keep the float free to move.
Free standard shipping to eligible U.S. addresses.
Usually ships in 1–2 business days.
Estimated delivery: 3–5 business days after dispatch.
Shipping policy1 HP · STAINLESS-STEEL DIRTY-WATER DRAINAGE
FSP1100DWB Sump & Drainage PumpMore flow.
Dirtier water.
A stainless-steel submersible pump for flood, pit and dirty-water drainage. Let the tethered float control the water level, or supervise manual drainage when the level gets lower.
$79.99 USD
In stock
Free standard shipping to eligible U.S. addresses.
Usually ships in 1–2 business days.
Estimated delivery: 3–5 business days after dispatch. Shipping policy.
- MAX FLOW
- 4,000 GPH
- MAX HEAD
- 30 ft
- MAX SOLIDS
- 35 mm
Maximum flow and maximum head are separate limits.
You MUST use a properly grounded GFCI outlet. Keep plugs and power connections dry.
- Stainless-steel body and large bottom inlet
- Tethered-float automatic control / manual hold-on
- Outlet fittings, power cord and rope included
Stainless-steel dirty-water drainage
Scene illustration · No people in the water during operation · Hose not included
FSP1100DWB / PRODUCT VIDEOS
Watch it work.
See the setup. See it in use.
Built for dirty-water drainage.
Stainless-steel construction and operating limits
Water rises. The float responds.
Automatic water-level switching
Supervised manual drainage
Manual mode does not stop automatically. Stay with the pump and disconnect power before it runs dry.
Match the hose. Protect the flow.
Hose diameter affects flow. Smaller hoses, including standard garden hoses, restrict output. A larger-diameter line allows more flow under the same conditions. The listed 4,000 GPH maximum uses a 1-1/2 in discharge hose in a horizontal setup; lift, hose length and fittings also reduce actual flow.
Technical specifications & performanceFSP1100DWB · Flow ratings and product data
| Head (ft) | Flow (GPH) |
|---|---|
| 0 | 4,000 |
| 5 | 3,650 |
| 15 | 2,600 |
| 25 | 1,100 |
| 30 | 0 |
Maximum ratings are separate limits. Actual output depends on the hose, fittings and total head. These are published product ratings, not measurements from this website.
Technical specifications
- POWER
- 1 HP
- RATED CURRENT
- 5.2 A
- MAX FLOW
- 4,000 GPH
- MAX HEAD
- 30 ft
- MAX SUBMERSION
- 23 ft
- MAX SOLIDS
- 35 mm / 1-3/8 in
- MAX WATER TEMP
- 95°F / 35°C
- POWER SUPPLY
- 120V AC / 60Hz
- PROTECTION
- IPX8
- CONTROL
- Tethered float auto / manual hold
- POWER CORD
- Approx. 26 ft / 8 m
- WEIGHT
- Approx. 13 lb / 5.9 kg
- MODEL
- FSP1100DWB
FSP1100DWB questions, answered.
Is this a low-water automatic utility pump?
No. The current listing shows automatic start above approximately 20 in and automatic stop below approximately 6 in in the illustrated float setup. Actual switching levels depend on the tether length and installation. Use a basin that gives the tethered float room to move. For lower water, supervised manual operation can drain to approximately 2 in; it does not stop automatically.
How do I switch to manual operation?
Secure the blue float in the side slot shown in the operation diagram. The pump then continues running while powered, even as the water level falls. Stay with the pump and disconnect power before it runs dry. Never leave manual operation unattended.
Why is my flow lower than 4,000 GPH?
Check discharge-hose diameter, hose length, vertical lift, bends and fittings. The listed maximum flow uses a 1-1/2 in hose in a horizontal setup. Smaller hoses, including garden hoses, restrict flow. Remove kinks and obstructions and keep the inlet clear. Maximum flow and maximum head are separate limits, not simultaneous output.
What basin size and water conditions does it need?
The current listing shows a minimum 16 × 16 in pit footprint, but the entire float travel path must also remain clear of walls, hoses and debris. It handles clean and dirty water with solids up to the manual-listed 35 mm. Water must stay at or below 95°F / 35°C. It is not for sewage, corrosive or flammable liquids, or continuous pond circulation.
Can I use a threaded garden hose?
Yes, the current listing includes a 3/4 in GHT garden-hose route and a stepped multi-hose adapter. Garden hoses restrict output compared with a wider discharge hose. Match the exact thread or hose inner diameter, and follow only the cut marks shown for the selected connection. G and NPT threads are not interchangeable. Hose and clamps are not included.
MANUALS & SUPPORT
Product resources.
FSP1100DWB manual & product support ↗Contact product support ↗
Safe use & operating limits
Use a properly grounded GFCI outlet. Keep power connections dry and lift the pump by its handle or supplied rope, never the power cable. Keep the float clear and the discharge hose free of kinks.
Never operate with people in the water. Not for flammable, corrosive or heated liquids; water must not exceed 95°F / 35°C. Do not use for continuous pond circulation. Manual hold-on does not stop automatically; disconnect power before dry running.
Shipping, returns & warranty
Free standard shipping to eligible U.S. addresses. Usually ships in 1–2 business days. Estimated delivery: 3–5 business days after dispatch. Consult our current store policies and the supplied manual for purchase and warranty terms.
