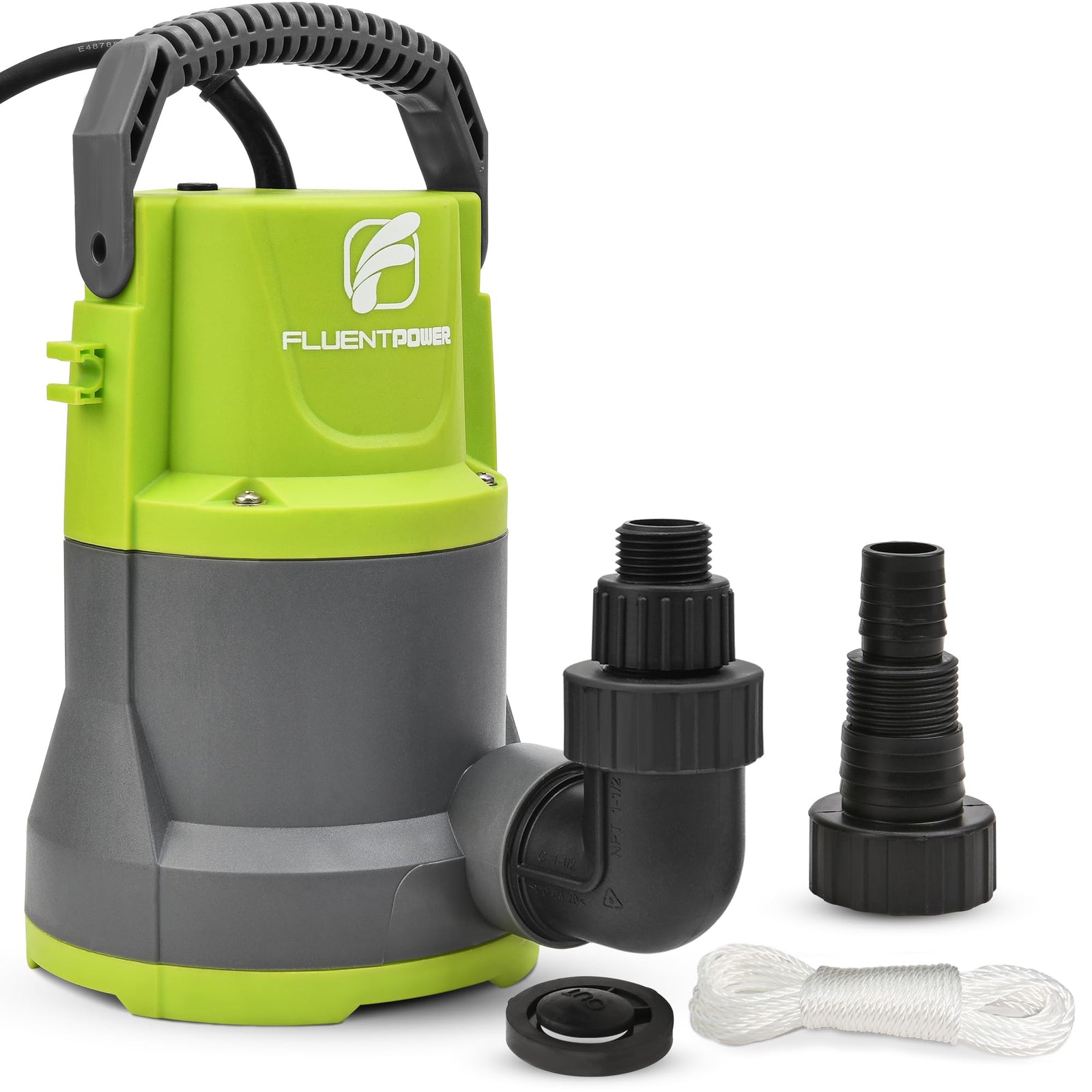

FLUENTPOWER FSP7501C-1 submersible utility pump with outlet adapters and rope

HIGH-FLOW UTILITY · Model FSP7501C-1

HIGH-FLOW UTILITY
FOR OPEN SETUPS.

The highest-flow model among the four currently reviewed utility pumps, with a side discharge that suits open setups where additional lateral hose clearance is available.

$58.99 USD

Sold out

3,500MAX GPH
30 ftMAX HEAD
3/4 HPPOWER
Manual-control operation 26.0 ft power cord and 26 ft nylon rope Confirm outlet connection before use

Verified product details.

Specifications below are taken from the final English manual for model FSP7501C-1.

FINAL MANUAL · FSP7501C-1
POWER3/4 HP
MAX FLOW3,500 GPH
MAX HEAD30 ft
MAX SUBMERSION23 ft
MAX SOLIDS1/5 in
MAX WATER TEMP95°F
POWER SUPPLY110–120V / 60Hz
MAX CURRENT3.55 A
CONTROLManual
POWER CORD26 ft
NYLON ROPE26 ft
DIMENSIONS10 × 6.1 × 8.9 in
MODELFSP7501C-1

Flow changes with lift.

Measure the vertical rise before choosing a pump. The final manual lists the flow rates at different lift heights.

SOURCE→PUMP→OUTLET
LIFT HEIGHTFLOW RATE
0 ft3,500 GPH
5 ft3,100 GPH
10 ft2,700 GPH
15 ft2,200 GPH
20 ft1,650 GPH

Choose how you'll connect.

Start with the end of your hose or pipe, then match both the connection type and size.

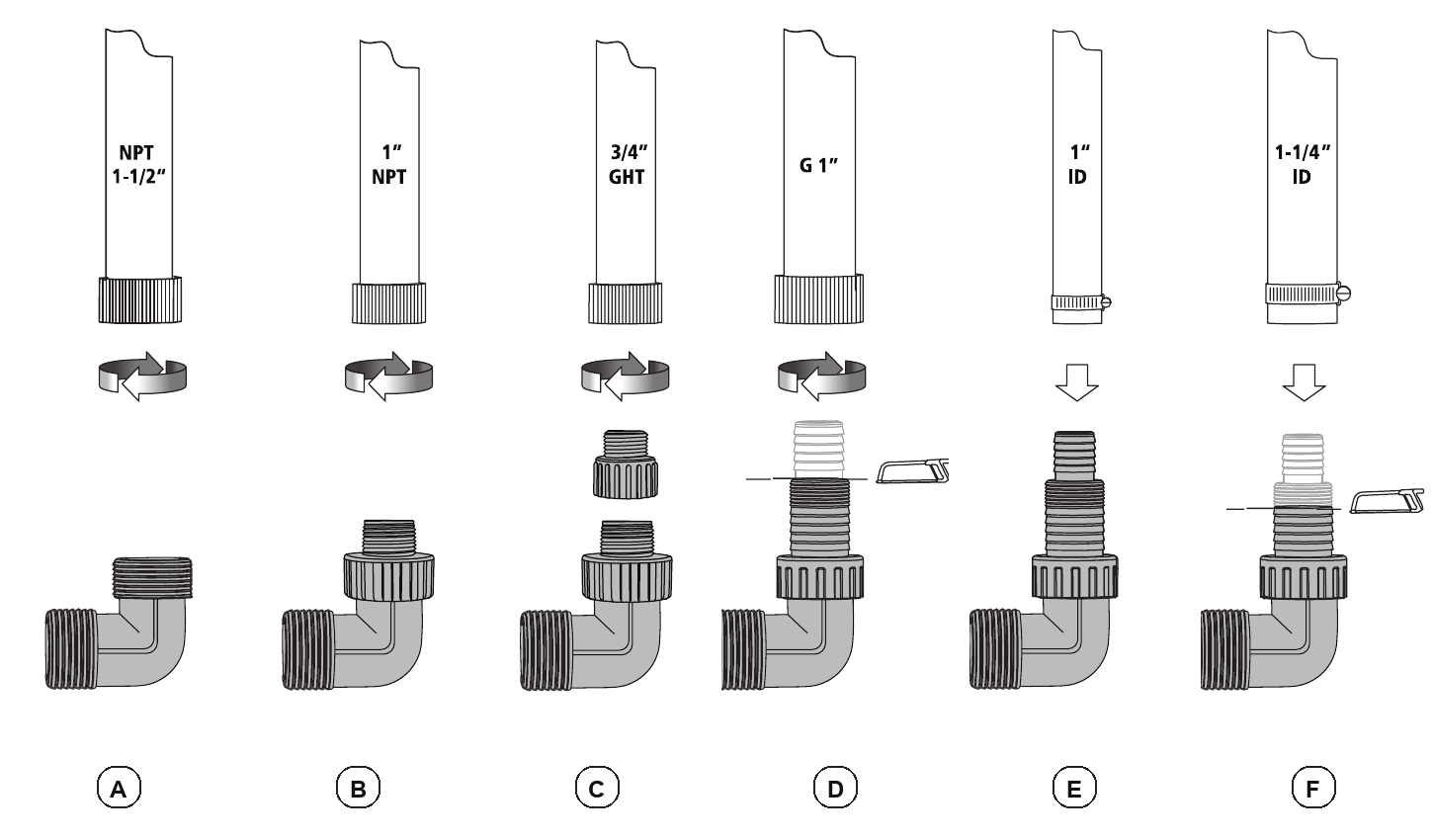

Final manual, page 2 — Hose Adapter Introduction
FSP7501C-1 connection selector reordered by method with position labels A through F; original manual references are retained below
REORDERED FOR SELECTION · SOURCE LINE ART: FINAL MANUAL PAGE 2 · MANUAL REFERENCES RETAINED BELOW
01

THREADED HOSE OR PIPE

Use a matching threaded end. Confirm both the nominal size and the thread standard before connecting.

A
1-1/2 in NPTNPT threaded connectionMANUAL REF A
B
1 in NPTNPT threaded connectionMANUAL REF E
C
3/4 in GHTGarden-hose thread connectionMANUAL REF F
D
G 1 inG-thread connectionMANUAL REF C
Manual line drawing of the upper threaded outlet coupling
02

PLAIN HOSE + CLAMP

For smooth-bore hose without a threaded end. Slide the hose over the barb and secure it with a correctly sized clamp.

E
1 in IDPlain hose inner diameterMANUAL REF B
F
1-1/4 in IDPlain hose inner diameterMANUAL REF D
Manual line drawing of the intermediate threaded outlet coupling

FIELD NOTENPT, G and GHT are different thread standards. Match the standard and size—not the inch number alone. Hose and clamp selection must also match the listed inner diameter.

Know the use limits.

The pump is intended for water-moving jobs within the operating limits stated in the manual.

MANUAL & SUPPORT
FIT

Temporary drainage and water transfer within the listed lift, temperature and solids limits.

NOT FIT

Do not operate where people are present in a pool or similar water area. Use a grounded GFCI-protected supply.

WARRANTY

12-month limited warranty from the original consumer purchase date, subject to the terms in the manual.
