THREADED HOSE OR PIPE

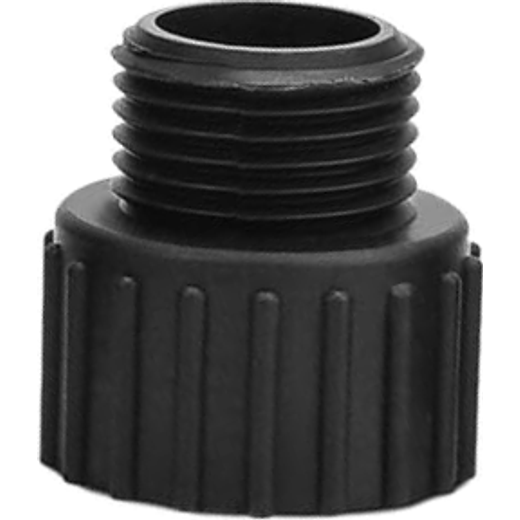

Use the supplied GHT coupling for a garden hose. For 1 in NPT pipe or fittings, connect directly to the pump's green threaded discharge port—no extra black adapter is used.
COMPACT & DIRECT · Model FSP250C-1A
COMPACT. DIRECT.
READY TO MOVE WATER.

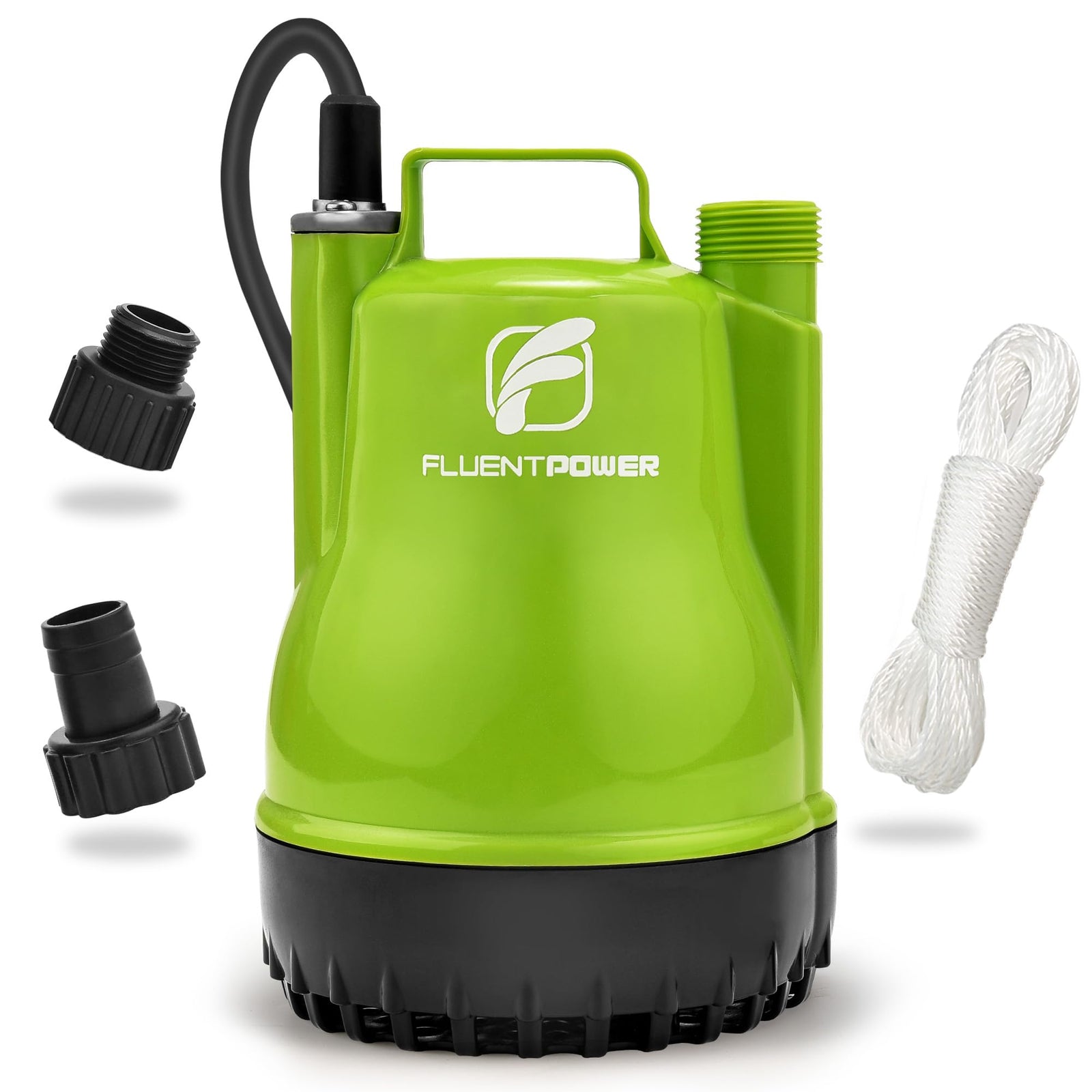

A compact manual-control utility pump for temporary drainage and water transfer, with a direct 1 in NPT pump outlet and two included adapters for a simpler setup.
$49.99
USD
In stock
1,900MAX GPH
23 ftMAX HEAD
1/4 HPPOWER
Manual-control operation
16.4 ft power cord and 26 ft nylon rope
Confirm outlet connection before use
Product details.
These values are taken from the final supplied FSP250C-1A instruction manual.
POWER1/4 HP
MAX FLOW1,900 GPH
MAX HEAD23 ft
MAX SUBMERSION13 ft
MAX SOLIDS1/5 in
MAX WATER TEMP95°F
POWER SUPPLY110–120V / 60Hz
MAX CURRENT2.3 A
PROTECTIONIPX8
CONTROLManual
POWER CORD16.4 ft
NYLON ROPE26 ft
STARTING WATER LEVEL6 in
LOWEST WATER LEVEL0.6 in
DISCHARGE PORT1 in male NPT
MODELFSP250C-1A
Flow changes with lift.
The final manual lists flow at 0, 5, 10, 15 and 20 ft of total lift.
SOURCE→PUMP→OUTLET
LIFT HEIGHTFLOW RATE
0 ft1,900 GPH
5 ft1,780 GPH
10 ft1,500 GPH
15 ft1,150 GPH
20 ft600 GPH

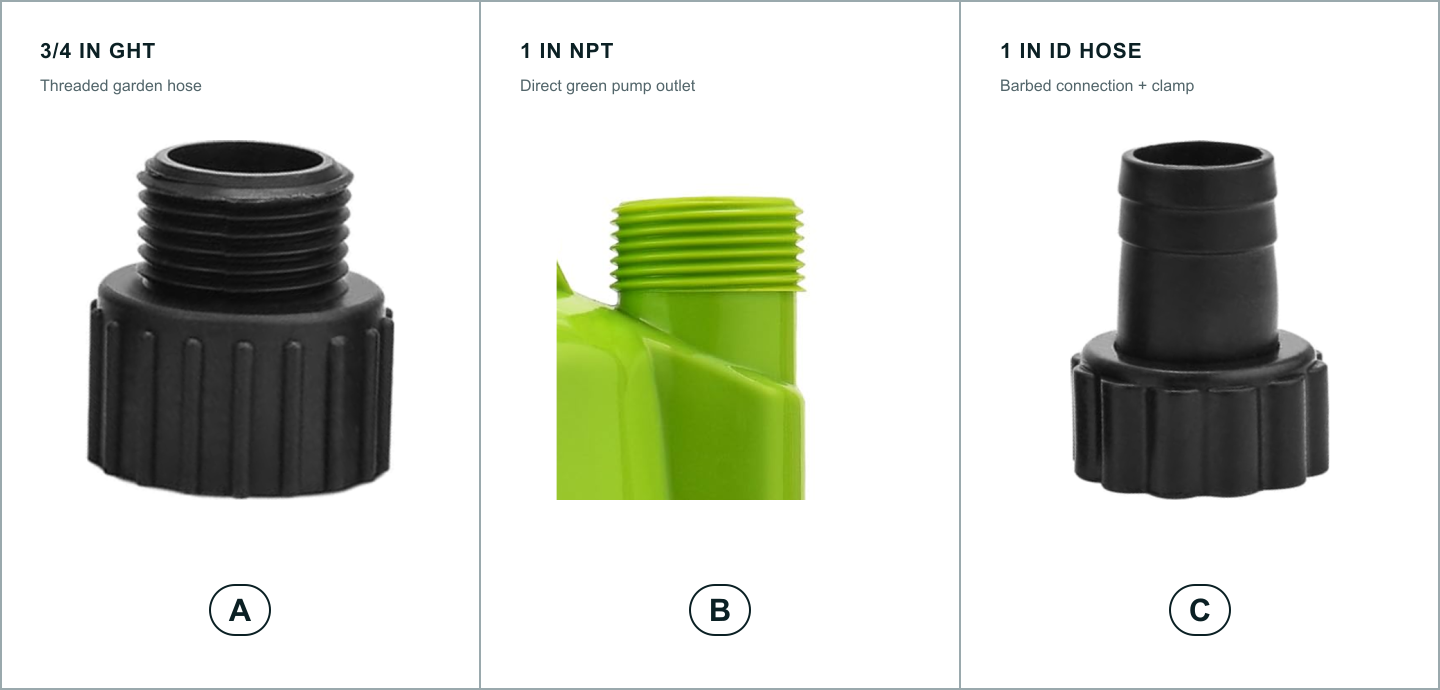

Choose how you'll connect.
Start with the end of your hose or pipe, then match both the connection type and size.
PLAIN HOSE + CLAMP

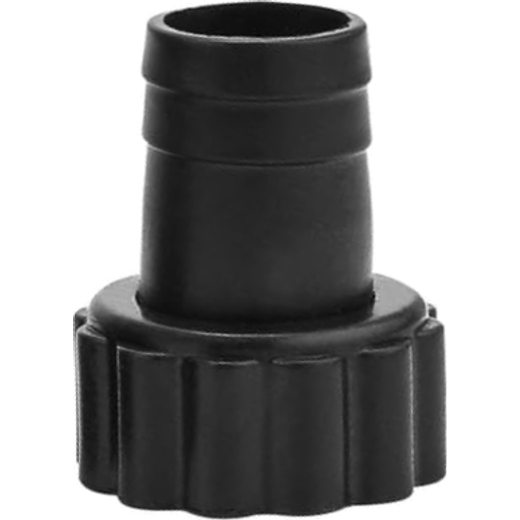

Slide a 1 in ID plain hose over the supplied stepped barb and secure it with a correctly sized clamp, following the installation shown on manual page 2.
FIELD NOTEThe manual shows the 3/4 in GHT and 1 in ID + clamp installations on page 2. The 1 in NPT path connects directly to the pump's green male-threaded outlet and does not use an extra black adapter.
Know the use limits.
Use the pump only within the operating limits stated in the approved final manual.
MANUAL & SUPPORTFIT
Temporary household water transfer and drainage within the listed lift, temperature and solids limits.
NOT FIT
Do not pump flammable, explosive, corrosive or heated liquids. Do not operate where people are present in a pool or similar water area. Use a grounded GFCI-protected supply.
WARRANTY
12-month limited warranty from the original consumer purchase date, subject to the terms in the manual.
